Blitz Damper ZZ-R SpecDSC Plus Coilover Suspension - Toyota Supra DB02 DB22 DB42 DB82 BMW Z4 HF20(G29)

SPECIFICATIONS:

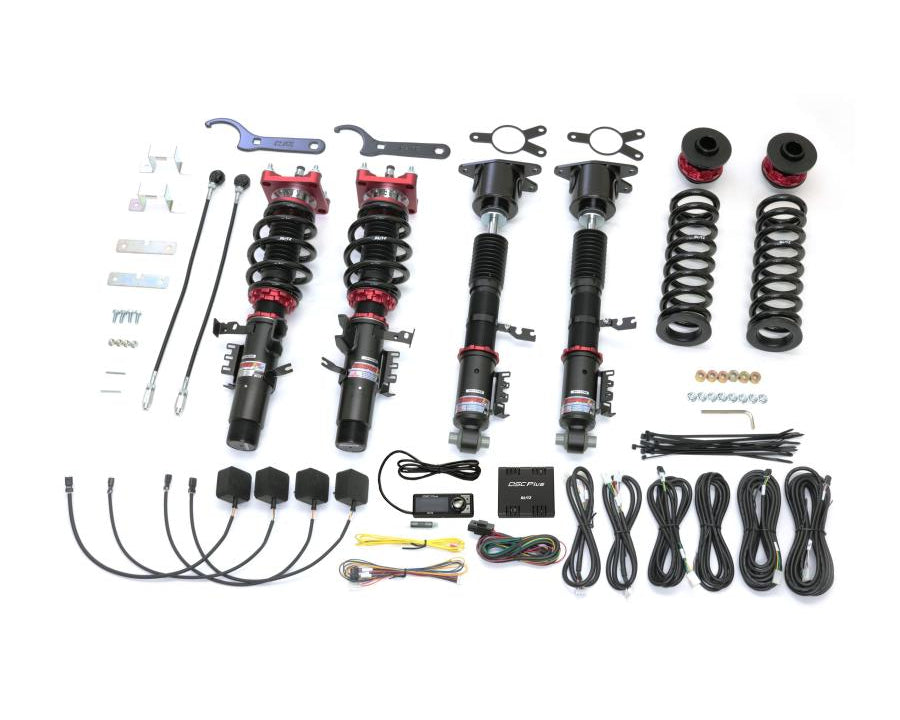

Included:
- Coilover suspension and hardware
- SpecDSC Plus controller, motors and hardware
Series: ZZ-R SpecDSC Plus
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: Adjustable pillow
- Rear: Strengthened Rubber
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 6.0
-- Rear: 8.0
- Free Length (mm):
-- Front: 170
-- Rear: 260
Height adjustment range (mm):
- Front: -55 ~ 0
- Rear: -50 ~ -5
JAN Code: 4959094985501

PRODUCT NOTES:
- Operating noise of shock absorbers may be heard easily because of pillow upper mount.
- HF20 HF30: Check lamp in meter panel can be eliminated when used with ZZ-R canceller, Part Num. 15218 sold separately.

FEATURES:
- Single Cylinder Type
- 96 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench

This kit includes the flagship ZZ-R Full Coilover Suspension Set and includes the newest version of the damper system controller DSC Plus. Take the highly acclaimed ZZ-R to the next level for the ultimate driving experience. Get full control over damper settings directly from the cockpit for perfect handling characteristics in any driving scenario. The ultimate tool in getting the most enjoyment out of the suspension from driving performance to riding comfort. Select from several different modes in easy to use Standard Mode or setup extremely refined settings in Advance Mode. This version also features world first Full Auto Mode which uses algorithm to continually refine damper settings in real time! The bipolar stepping motors are also more compact and faster than the previous model. Built in G-Sensor within Motor Drive Unit and Optional GPS Sensor allow for further advanced settings based off of G-Force and speed which can also display real time and peak G-force. Optional remote switch allows user to relocate the switch for easy access to quick changes in between modes.

BMW Z4 G29 HF20 sDrive 20i B48B20B (03/2019-03/2022)
BMW Z4 G29 HF30 M40i B58B30C (03/2019-03/2022)
Toyota GR Supra DB02 B58 (04/2020~)
Toyota GR Supra DB22 B48 (05/2019~)
Toyota GR Supra DB42 B58 (05/2019-04/2020)
Toyota GR Supra DB82 B48 (05/2019~)
