HKS Oil Cooler Kit S Type for Normally Aspirated Engines - BRZ, GT86

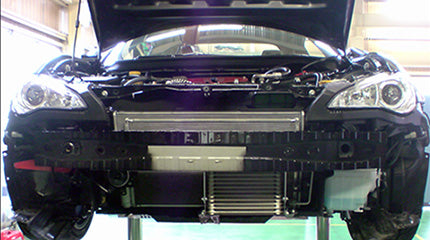

• Including the pre-assembled hose, bracket, and air guide and locating the core in front of the radiator enable an easy installation. Also, there is no major modification required to the chassis.

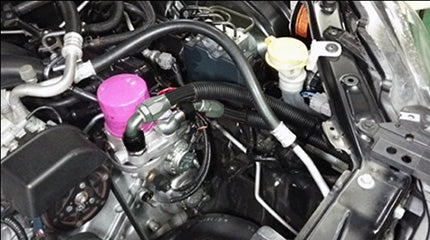

• Special spacer and center bolts were designed exclusively for this kit to install the oil cooler attachment without modification.

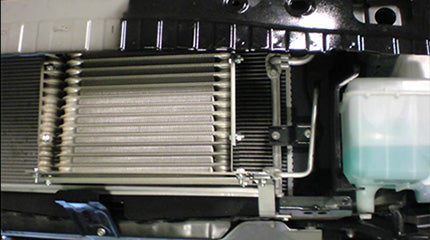

• The thin 15-layer core improves the cooling performance and makes installation easier.
• This kit is applicable only to the NA engine.
• The compatible oil cooler kits for the GT2 Supercharger Pro kit and the Bolt-on Turbo kit GTIII-RS, GT4525, and GT4135 are as follows;
  Model Year:  16/08-21/10 >>> Code No.  15004-AT112
  Model Year: 12/04-16/07 >>>  Code No.  15004-AT111

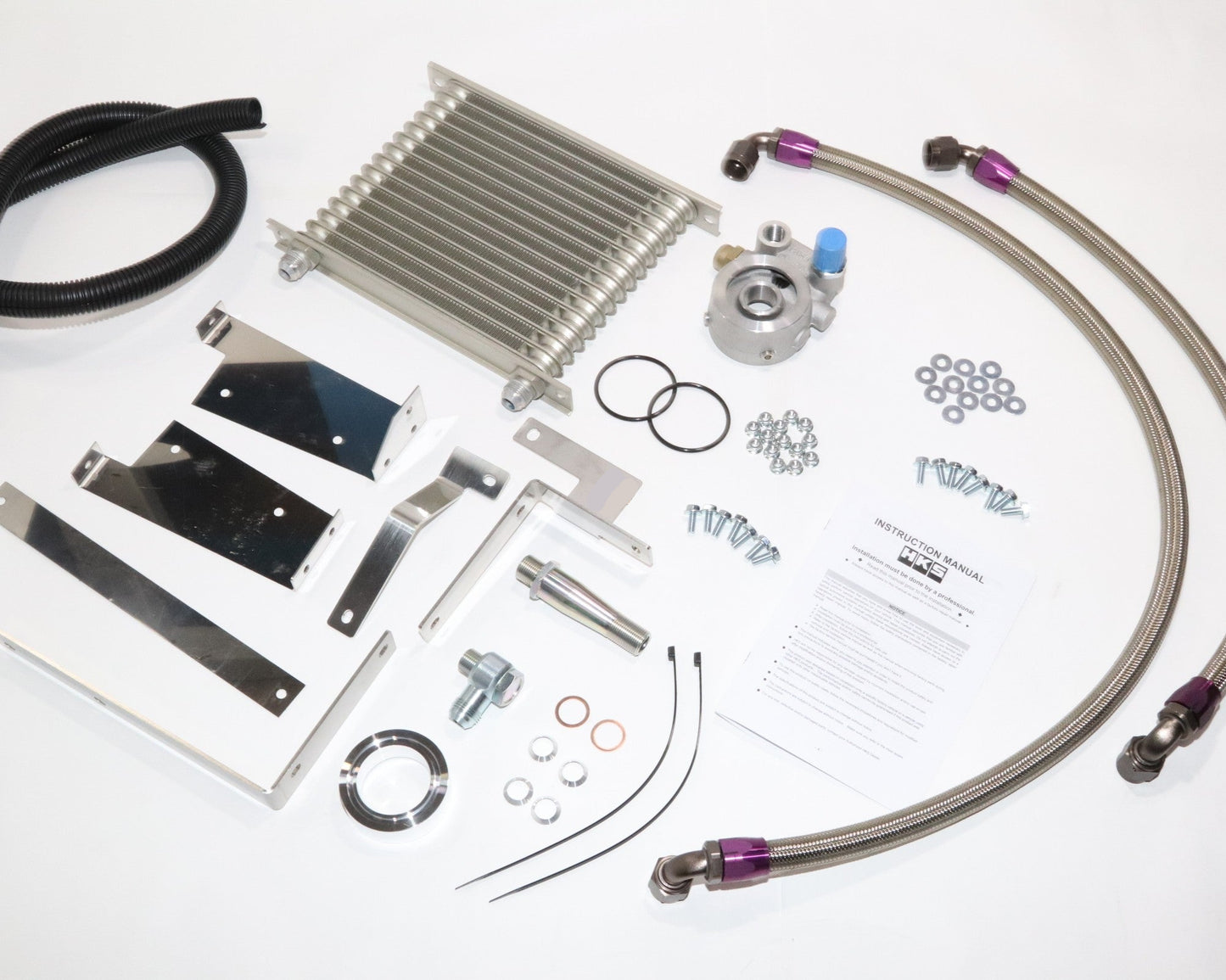

■The following parts are included

Oil Cooler Core / S-type Attachment / Spacer / Center Bolt / Banjo / Banjo Bolt / Bracket / Air guide / Accessory Parts

This kit is a direct bolt on application designed to maintain cool engine oil/water temperatures. Along with increased engine oil volume Ideal size of highly efficient inner-fin design oil cooler core and strategic mounting location allow for optimum cooling properties. Depending on application the kits are available between standard and oil block relocation type layout for best clearance and accessibility. All oil blocks also come with sensor ports to properly and easily adapt most aftermarket oil pressure and temperature meters. Prolong the life of your oil and in turn your internal engine components, especially in harsh driving environments. Most blocks come with built in thermostat to regulate oil allowing engine to warm up quicker as well. Custom mounts and brackets made specifically for each application allow for a high quality durable and efficient setup.

Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
