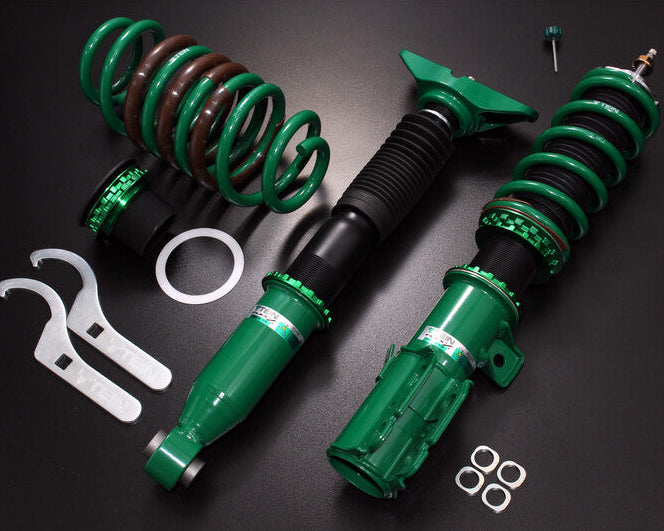

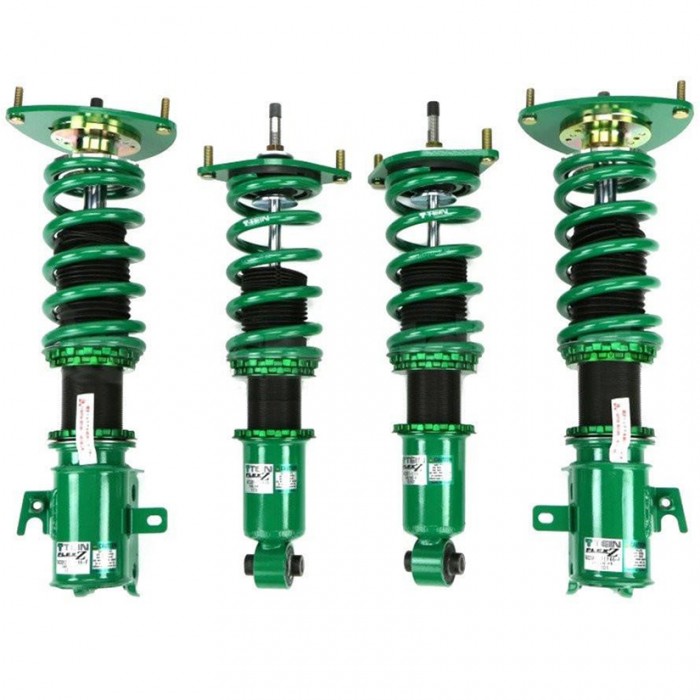

TEIN Flex Z Coilover Suspension - GR Yaris

Flex Z Features include:

• Twin-Tube System for Comfortable Ride on Streets!
• Full-Length System for Ride Height Adjustment w/ Minimal Change in Ride!
• Damping Force Adjustable to Change Ride to Desired Settings!
• Compatible with EDFC Series to enable In-Car Damping Force Adjustment!
• Upper Mounts Included for Easy Installation!
• Highly Durable & Reliable!
• Thoroughgoing Rust-Proofing!
• Highly-Rigid Bracket & Shell Case!
• Smooth Ride Height Adjustment & One-of-A-Kind Adjusting Wrench!
• No-Sag Springs!
• High-Spec Damper Oil!
• Replacement Service to Bring Used Shock Absorbers Back to Life!

SPECIFICATIONS:
Series: Flex Z
Springs Specifications:
Spring Rate:
- Front: 6.0K
- Rear: 7.0K
Stock Height Difference (mm):
- Front: -25
- Rear: -20
Max Adjustability (mm):
- Front: -72 ~ -7
- Rear: -48 ~ -0
Recommended Adjustability (mm):
- Front: -35 ~ -15
- Rear: -30 ~ -10

Upper Mounts:
- Front: OEM
- Rear: Strengthened Rubber

Made in Japan twin tube system with full length ride height and damping force adjustment. The Flex Z is compatible with EDFC and upper mounts which are included in most kits. The shocks are sealed to allow for easy replacement without the need for a full overhaul.

Toyota GR Yaris GXPA16 G16E-GTS (09/2020-03/2024)
