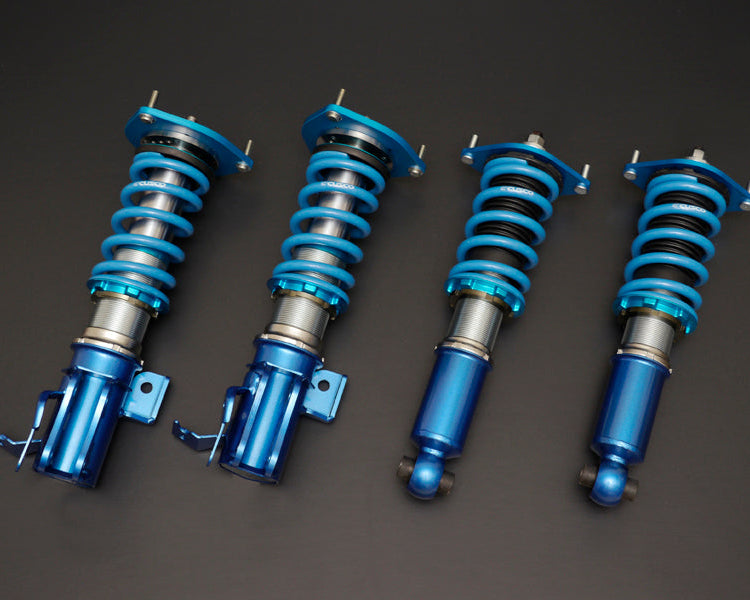

CUSCO Sport S Coilover Suspension Kit - BRZ ZC6 86 ZN6

While maintaining the design philosophy and specifications of SPORT R, damping force, spring rate and stroke are set for the streets targeting more users.
A set-up targeted for sports driving with radial tyres
Reinforced rubber upper mount is used for the rear upper mount, taking into consideration street use (sound, ride comfort, etc.) (Wishbone vehicles are used for both front and rear)
To accommodate large inputs, a large diameter piston is used to generate stable damping force.

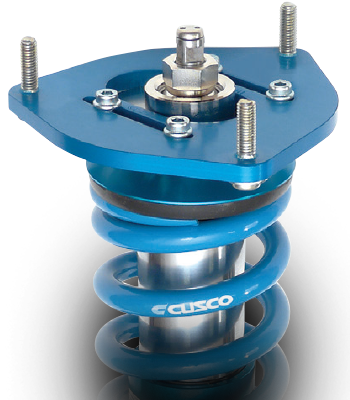

The strut-type front features a camber adjustable pillow upper mount, and other features include a camber fixed reinforced rubber upper mount.
Vehicles with upper mountless structures can be fitted with a center lock and pillow upper mount (sold separately).
Some front strut type models have an option to use a newly developed CC pillow upper mount (camber and caster independent adjustment type).

SPECIFICATIONS:
Maximum Adjustment Range (mm):
- Front: -55 to 0
- Rear: -60 to 0

Spring rate (kgf/mm):
- Front: 8 (6, 7, 9, 10, 12)
- Rear: 7 (5, 6, 8, 9, 10)

Damping force adjustment
- Front: 24 Stages
- Rear: 24 Stages

E-con:
- Front: -
- Rear: -

Upper Mount:
- Front: Adjustable Pillow Ball
- Rear: Non adjustable HD rubber upper mount

Height adjustment system:
- Front: Coaxial Length Adjustment
- Rear: Coaxial Length Adjustment

Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
