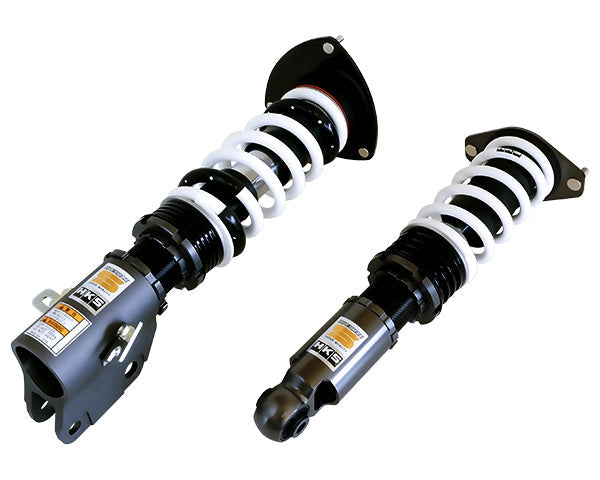

HKS Coilover Suspension Full Kit Hipermax S - WRX STi VAB WRX S4 VAG

Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving.

SPECIFICATIONS:
VAB
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 88(9)
- Rear: 69 (7)
Free Height (mm):
- Front: 220(Barrel)
- Rear: 170
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±10 ( 1 )
- Rear: ±10 ( 1 )
Damper Force (Rebound/Damping):
- Front: 809/505
- Rear: 363/348
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Coilover
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: 4.7
- Rear: 4.7
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: ~ -41
-- Rear: ~ -59
-Drivable Range High - Low (mm):
-- Front: ~ -41
-- Rear: ~ -59

Subaru WRX S4 VAG Applied A FA20 (08/2014-05/2015)
Subaru WRX S4 VAG Applied B FA20 (06/2015-05/2016)
Subaru WRX S4 VAG Applied C FA20 (06/2016-07/2017)
Subaru WRX S4 VAG Applied D FA20 (08/2017-05/2018)
Subaru WRX S4 VAG Applied E FA20 (06/2018-05/2019)
Subaru WRX S4 VAG Applied F FA20 (06/2019-07/2020)
Subaru WRX S4 VAG Applied G FA20 (08/2020-03/2021)
Subaru WRX STi VAB Applied A EJ20 (08/2014-05/2015)
Subaru WRX STi VAB Applied B EJ20 (06/2015-05/2016)
Subaru WRX STi VAB Applied C EJ20 (06/2016-05/2017)
Subaru WRX STi VAB Applied D EJ20 (06/2017-05/2018)
Subaru WRX STi VAB Applied E EJ20 (06/2018-05/2019)
Subaru WRX STi VAB Applied F EJ20 (06/2019-04/2020)
