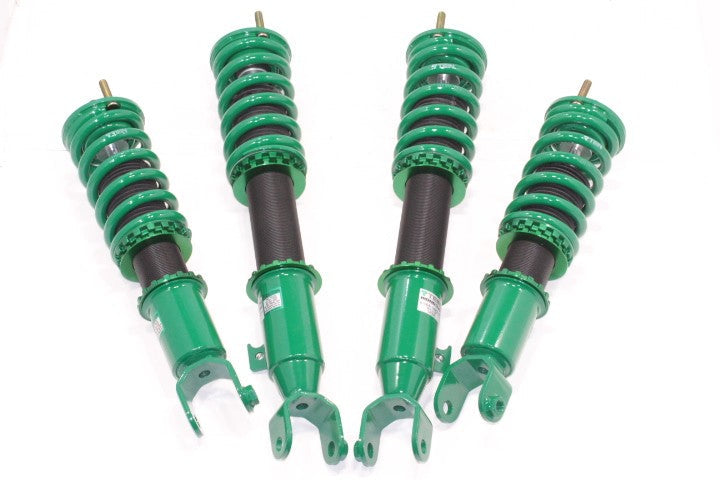

Kit de suspensión Coilover TEIN Street Advance Z - Civic EK2 EK3 EK4 EK9

SPECIFICATIONS:
Series: Street Advance Z
Damper Adjustability: 16-way
Upper Mounts: STD
Springs Specifications:
Spring Rate (K):
- Front: 6.0
- Rear: 3.0
Spring Length (mm):
- Front: 225
- Rear: 225
Stock Ride Height Difference (mm):
- Front: -20
- Rear: -25
Max Adjustability (mm):
- Front: -65 ~ +1
- Rear: -67 ~ -1
Recommended Adjustability (mm):
- Front: -30 ~ -10
- Rear: -35 ~ -15

FEATURES:
- Steel Construction
- Twin Tube internal construction
- Larger piston diameter for strut type front and rear (22mm)
- 16-way Damping adjustment with over 200% increase in damping force change.*
- Ride Height adjustable via spring seat
- Powder coated damper body
- Non-welded ZT coated Adjustment Tube
- Full-Length Dust Boots
- 1-piece Aluminum Spring Seat with Delrin Thrust Washer
- Available for Overhaul
- 1-year Manufacturers Defect Warranty
- over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

PRODUCT NOTES:
- Can be used in conjunction with the EDFC

Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Honda Civic EK2 D13B (09/1995-09/1998)
Honda Civic EK2 D13B (09/1998-08/2000)
Honda Civic EK3 D15B (09/1995-09/1998)
Honda Civic EK3 D15B (09/1998-08/2000)
Honda Civic EK4 B16A (09/1995-09/1998)
Honda Civic EK4 B16A (09/1998-08/2000)
Honda Civic Ferio EK2 D13B (09/1995-08/2000)
Honda Civic Ferio EK3 D15B (09/1995-08/2000)
Honda Civic Ferio EK4 B16A (09/1995-08/2000)
Honda Civic Type-R EK9 B16B (08/1997-09/1998)
Honda Civic Type-R EK9 B16B (09/1998-08/2000)
