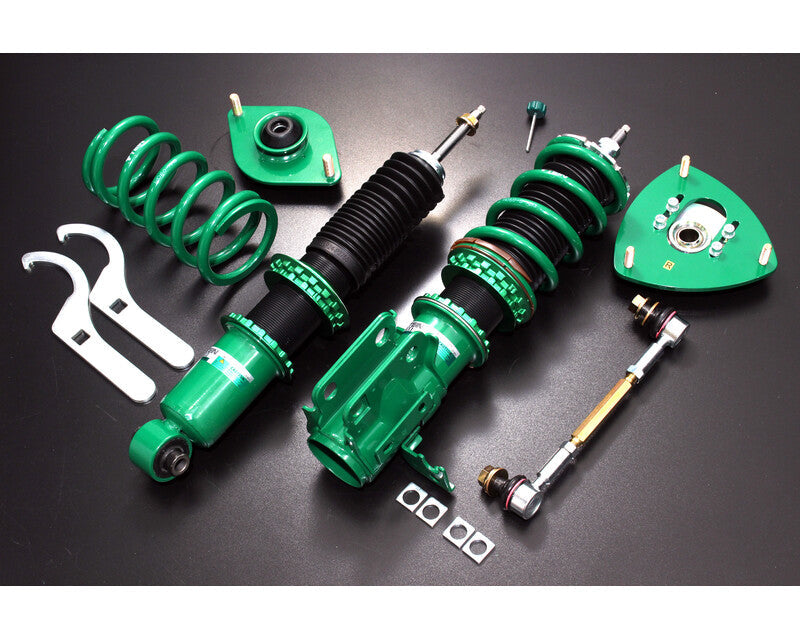

TEIN RX1 Coilover Suspension Full Set - BRZ ZC6 ZD8 86 ZN6 GR86 ZN8

SPECIFICATIONS:
Series: RX1
Mounts:
- Front: Camber adjustable
- Rear: Rubber Upper Mounts
Springs Specifications:
Spring Rate:
- Front: 6.0K (58.8mm)
- Rear: 6.0K (58.8mm)

Stock Height Difference (mm):
- Front: -25
- Rear: -25

Max Adjustability (mm):
- Front: -67 ~ -6
- Rear: -93 ~ +12

Recommended Adjustability (mm):
- Front: -35 ~ -15
- Rear: -35 ~ -15

FEATURES:
- Hydraulic Bump Stopper (HBS)
- Highly Rigid Steel Construction Shell and Bracket (STKM13C)
- Twin Tube Internal Construction
- Full-Length Adjustable via Threaded Body and Spring Seat/Seat Locks
- 16-Way Damping Adjustable (simultaneous compression and rebound)
- New Damper Valving Specifications for Improved Street Comfort
- Incorporated Advance Needle Design (nearly 200% improvement over earlier lineups)
- Larger Piston Diameter (22mm O.D.) for Strut Type
- EDFC (Electronic Damping Force Controller)/EDFC Active Compatible
- Powdercoated Brackets and ZT Coated Shellcase for Outstanding Rust Prevention
- One Year Warranty Against Manufacturer's Defects

COMPATIBILITY NOTES:
- RR: Need cut or remove interior for equip
- BRZ ZC6 ZD8 86 ZN6 GR86 ZN8: Only for 04/12~ vehicles
- ZC6: Only for 03/12~ vehicles
- Grade:
-- BRZ ZC6 ZD8 86 ZN6 GR86 ZN8: GT LIMITED, GT, G, RC
-- ZC6: RA, S, R

Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Subaru BRZ ZD8 FA24 (08/2021~)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
Toyota GR86 ZN8 FA24 (10/2021~)
