Trust GReddy T620Z Bolt-On Turbo Kit with Sports Catalyzer - GT86, BRZ

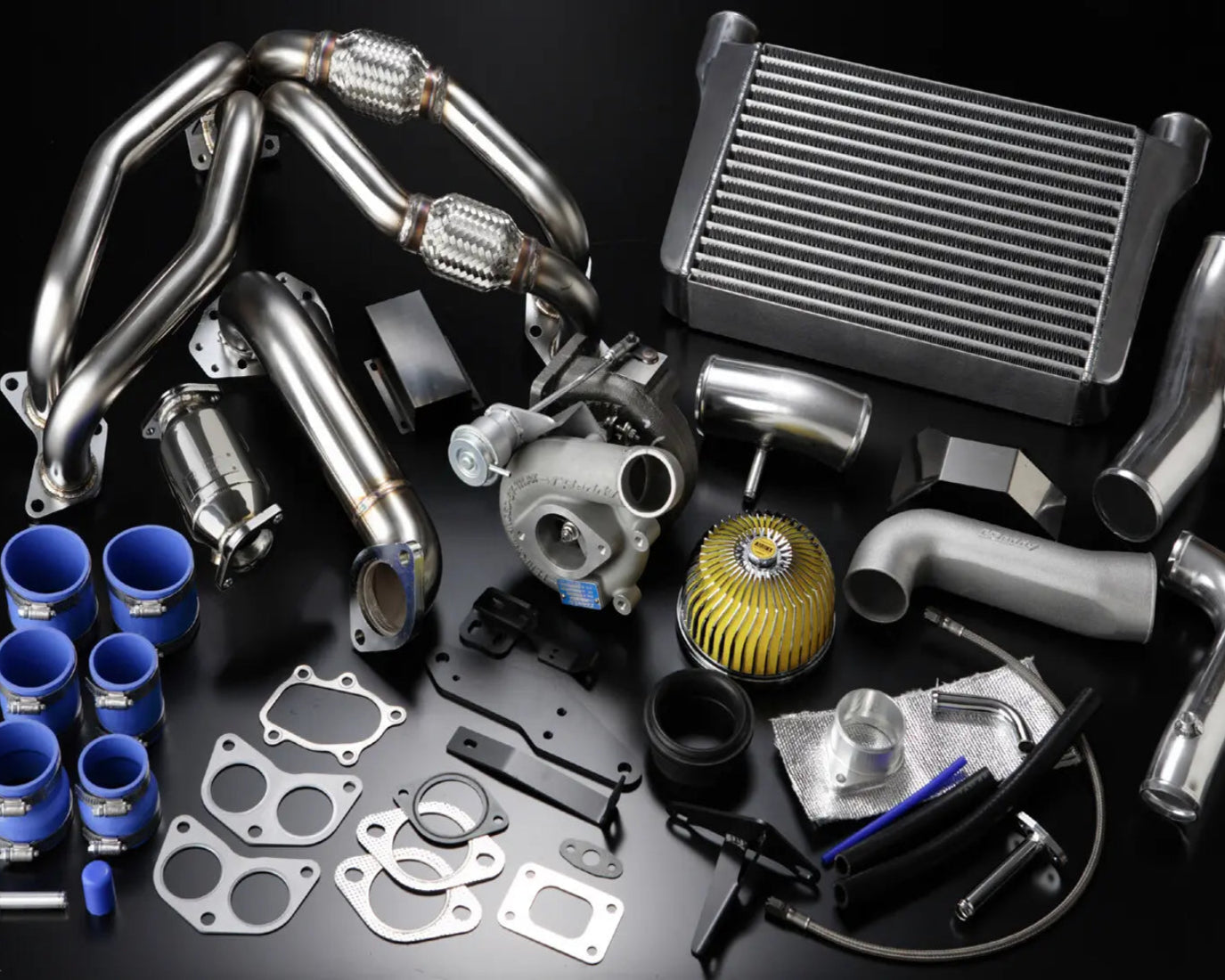

Included:
- T620Z-10CM2 turbine
- SUS Exhaust Manifold
- SUS Front Pipe
- Sports Catalyzer (200cpi)
- Intercooler Type 40E
- Aluminum intercooler Piping
- Airinx intake fiter kit
- Short parts (bolts, gaskets, hoses and grommets) for installation

PRODUCT NOTES

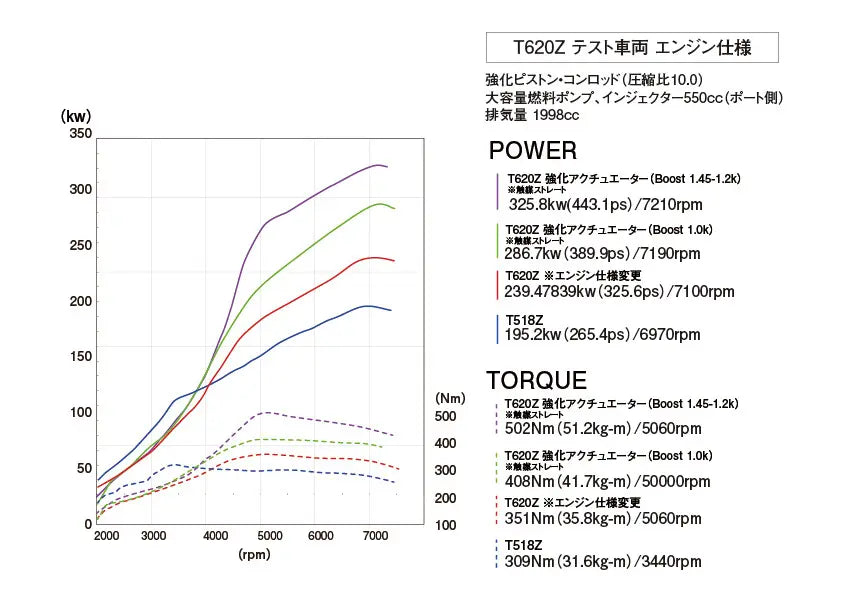

Power Output:
-Standard Boost: 68.6-78.4kpa(0.7cm20.8kg/cm2) = between 239~280 kw (325 ~380 ps)
-Step Up Boost Up between 239~294 kw (325 ~400 ps)
- ECU, settings as well as dyno tuning are not included and will need to be purchased separately.
- Oil Pan needs to be modified for Oil Return or TRUST Oil Pan (Part Number: 11912001)
- Oil cooler is recommended to be installed with this kit (sold separately).
- Upgrade Actuator recommended for High Boost applications (Part Number: 11511600)
- Blow Off Valve FV Adapter Kit recommended for High Boost applications (Part Number: 11511214)

COMPATIBILITY NOTES
- 86 17inch 6MT/6AT、BRZ 17inch 6MT/6AT, 86 16inch 6MT/6AT、BRZ 16inch 6MT/6AT

Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
